Tire Pressure Is Your First Suspension Element

When people talk about suspension, they think about the fork and the damper. Clicks, air pressure, tokens. But the first thing that touches a rock on track is not the fork. It is the tire. And the tire has a setup of its own, except that it gets adjusted in tenths of a bar, usually in a parking lot, in a hurry, with a pump that shows something other than the truth.

This is a follow up to the article about heat, because those two questions overlap more than they seem to.

Why the tire comes first

Suspension has a working window. A fork responds to impacts that are large enough and slow enough to actually move the mass of the lowers and push oil through the shim stack. Everything below that threshold, the small gravel, the roots you barely clip, the texture of dry hardpack, the vibration that turns your forearms to stone after forty minutes, all of that is absorbed by the tire alone. The fork never sees it.

That has a very practical consequence. If your impact frequency is too high, you do not solve that problem at the damper. You solve it at the tire. And the other way around: if the hit is big enough that the tire cannot swallow it, no pressure in the world will hide it.

This is why wrong pressure produces symptoms that sound like a suspension problem. The rider says the fork feels harsh, and the fork is fine. Or the rider says the front wheel is washing out in the corner, when the front wheel was actually lost before the corner, on three rocks the tire deflected off instead of tracking.

Why 0.1 bar changes more than one click of compression?

One click of low speed compression changes damping force across a narrow band of shaft speeds. One tenth of a bar changes three things at once:

The contact patch. Not only how much rubber touches the ground, but the shape of that patch, and how far the tire can wrap around an edge under lean.
Sidewall stiffness in the corner. Same tire, same casing, different pressure, different behavior at the moment the tire is loaded laterally.
The threshold where the tire stops tracking the ground and starts bouncing off it.

And one more thing that matters. A tire has no damper. A fork converts impact energy into heat and spends it. A tire is a spring with almost no damping: whatever energy it takes in, it gives back. When it is too hard it does not just fail to track the ground, it actively pushes you off your line. That is why an overinflated tire on a dry, fast course does not simply feel uncomfortable. It feels unpredictable.

And this is where heat comes back in

The air inside the tire follows rules that are not up for negotiation. Heat it and the pressure rises, and the amount is not trivial.

Set your pressure in a cold garage or a hotel room in the morning, then put that tire on a dark surface at thirty five degrees in the sun, where the casing heats further from deformation and braking, and you get a shift of roughly one tenth of a bar for every ten degrees of temperature rise. In European summer conditions that easily becomes two or three tenths.

Translated: you inflated what you thought you were riding, and by the time you are on the start line you are riding something else. And that something else is not constant. It moves through the race, depending on how much you brake and how abrasive the surface is.

This is why "what pressure do you run" is the least useful question in the sport. An answer with no temperature, no casing, no insert and no rider weight attached to it is not information. It is an anecdote.

What you can do without buying anything?

A few things that cost nothing and remove most of the noise from the system:

1. Measure where you ride, not where you sleep

The tire should be at the ambient temperature of the venue when you check it. Not in the shade, not in the van, not at seven in the morning for a two o'clock race or ride, leave the bike on the sun and heat for 20minutes.

2. Use one gauge.

Any gauge, but always the same one. Absolute accuracy is not what you are after. What you need is for the difference between Tuesday and Sunday to be a real difference, and not the difference between two instruments. Two pumps out of the same box can disagree by more than the change you are trying to feel.

2. Change one thing at a time.

If you touch pressure and fork clicks in the same session, you have not run a test. You have changed the bike. You have no idea which change did what, and your perception will not tell you.

2. Write it down.

Pressure, temperature, surface, how it felt. Three months of notes like that are worth more than anyone's advice from a forum, because they describe your weight, your style and your trails.

Where feel runs out

Everything above you can do on your own, and it will help. But there is a limit, and it is worth saying out loud.

Perception is an excellent detector that something is wrong and a poor detector of what is wrong. A rider will report a harsh fork when the real issue is an overinflated tire. A rider will report lost grip when the problem happened twenty meters earlier. At the limit the brain filters, and it filters out exactly the information you would need for a diagnosis.

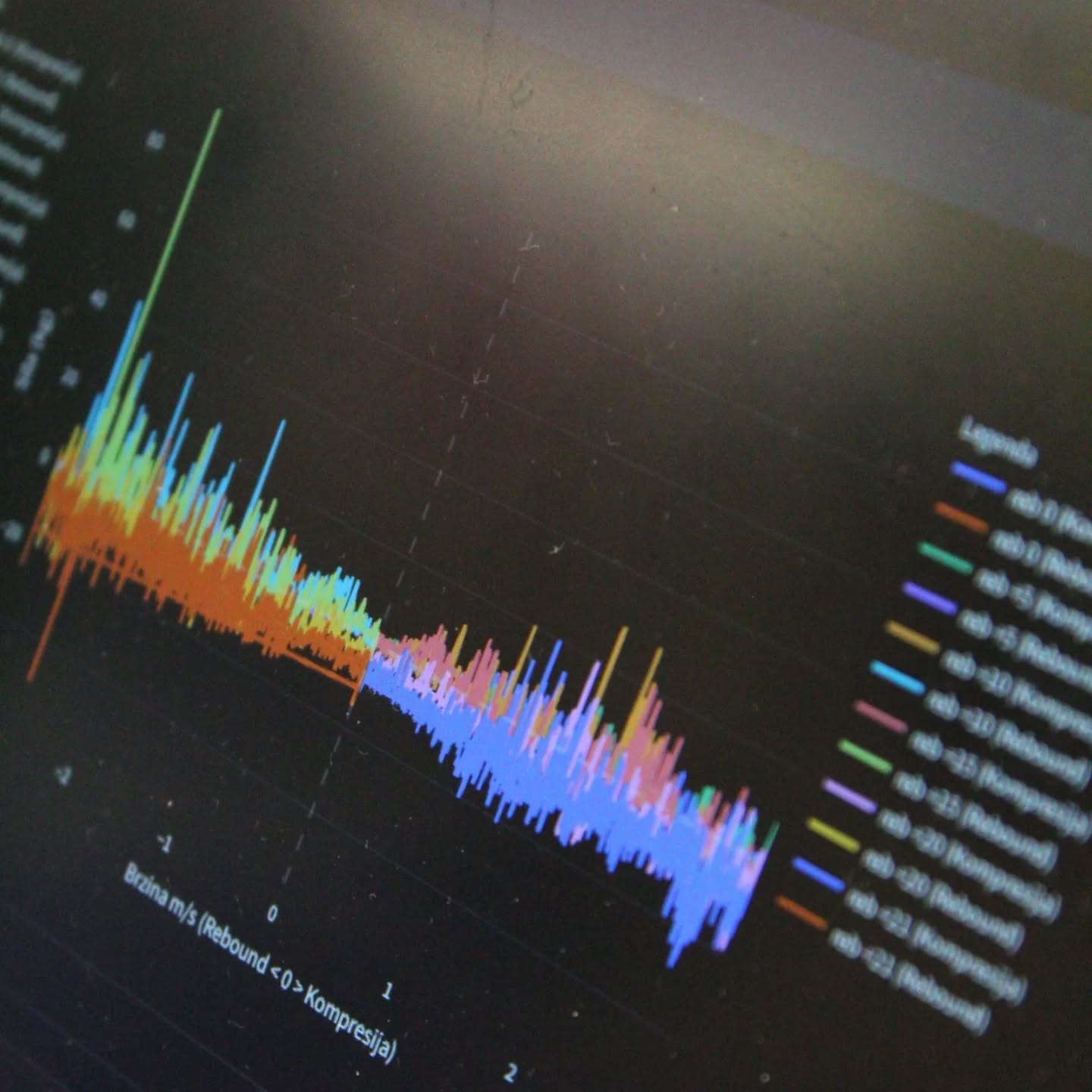

That is why I do not ask a rider what pressure they want. I measure what is actually happening at the tire and at the suspension, and then we decide together, of course we have a baseline. That is the work I do with athletes at World Cup level, and it is the reason I ended up building my own telemetry analysis tools, because the tool that does what I need was not something I could buy.

The actual protocol, the numbers, and how I read them are a different story, and that one is coming.

For now: before you touch a single click on the damper, make sure you are confident about one tenth of a bar. Very often the problem is not in the fork. The problem is in the thing that keeps the bike on the ground.
